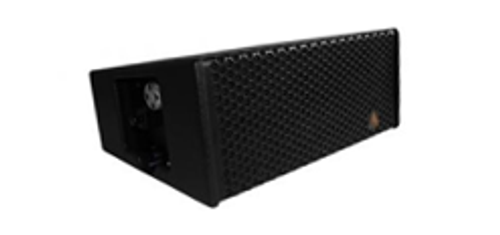

This ultra compact line array loudspeaker is a convertible cardioid Sub; a single-sided box that can be arrayed conventionally or arrayed in back-to-front pairs for true cardioid performance. The Metrix Sub is equipped with two newly designed, powerful 15” ND15-S Kevlar Neodymium bass drivers, mounted in a tuned, vented and fully braced enclosure.
|Frequency Range (+/-3 dB)||35Hz - 110Hz|
|Maximum Peak SPL**||136.3 dB|
|Components LF||2x ND15-S 15" Kevlar Neodymium Driver|
|Nominal Impedance LF||4 Ω|
|Power Handling (AES / Peak) LF||2x 500 / 2x 2000 W|
Spring-Loaded Rigging Hardware pops up from the top of the sub in four slots. This allows for Metrix cabinets to easily be attached under a Metrix sub in an array.
|Connection||5x Speakon™ NL8: 2x Front (Pins 2 +/-), 2x Rear Parallel (Pins 1 +/-) and 1x Rear Output (Pin 2 to 1)|
|Height Front (mm / in)||620 / 24.41|
|Width (mm / in)||540 / 21.37|
|Depth (mm / in)||733 / 28.87|
|Weight (kg / lbs)||58.7 / 129.5 (-t), 53.2 / 117.5 (-i)|
|Supported Processing||Lake, XTA|
