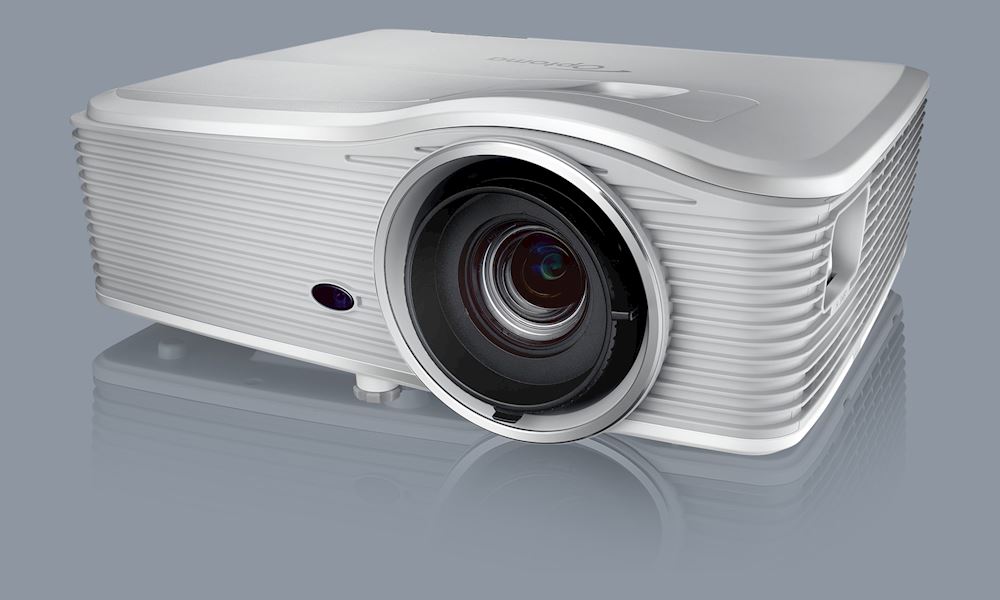

Optoma WU615T WUXGA
Producing ‘better than Full HD" quality images for an uncompromising level of detail, the WU615T is designed for demanding professional installation environments usually associated with larger, heavier exchangeable lens projectors. This powerful high-specification projector boasts a brightness of 6,500 lumens and features an impressive 1.8 optical zoom, vertical/horizontal lens shift and four corner geometric correction. Flexible connectivity comes via 2 x HDMI inputs (one being MHL enabled) DisplayPort and multiple analogue connections. The WU615T also benefits from HDBaseT connectivity, allowing signal and control over a single wire up to 100m
Simplify installation with PureShift, which provides a wide range of projector placement possibilities.
*Check the user manual for detailed lens shift information
Individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 metres/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Enjoy dazzling colours for years to come; guaranteed by Optoma for five years’ consistent performance.
A valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine tuned to give the same brightness levels; important, especially when side by side.
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Use the USB-Power to power an HDMI dongle
The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.
Stay in control of your presentation with AV mute. Direct your audience's attention away from the screen by blanking the image when not needed.
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX Compatibility Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• LAN Control Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer. • Schedule the projectors to power on/off. • Control and alter the projector settings using the simple web browser. • Emergency text broadcast capabilities for urgent or important announcements. • Automatically receive email updates for lamp maintenance.
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used
| Display Technology | Single 0.65” WUXGA DLP® Technology by Texas Instruments |
| Resolution | WUXGA 1920 x 1200 |
| Brightness | 6500 ANSI lumens |
| Contrast Ratio | 10,000:1 |
| Lamp Life2 Eco/Bright | 3000/2000 (hrs) |
| Throw Ratio 3 | 1.2-2.16:1 |
| Zoom Type | Optical 1.8x, Digital 0.8 - 2.0x |
| Lens Shift | +/-25% vertical, +/-10% horizontal |
| I/O Connectors | 2xHDMI-in, DisplayPort, VGA-in, HDBaseT, composite in, S-Video in, Mic in (3.5mm), audio in (3.5mm), audio in (RCA), audio out (3.5mm), 3D SYNC out, power, USB Type A (power), 12V trigger, control (RJ45 and RS-232C) |
| Audio | 2 x 10 watt speakers |
| Keystone Correction | +/-40% vertical & horizontal |
| Weight | 14 lbs. |
| Dimensions (W x D x H) | 16.7” x 6.3” x 13.5” |
| Aspect Ratio | 16:10 (native), 16:9 and 4:3 compatible |
| Offset | 100%-120% |
| Projection Screen Size | 27.9”-301.8” |
| Projection Distance | 4.3’ - 26.25’ |
| Projection Lens | F=17.63-31.36mm, manual focus |
| Uniformity | 85% |
| Maximum Resolution | WUXGA (1920x1200) |
| Computer Compatibility | UXGA, SXGA+, HD, WXGA, XGA, SVGA |
| Video Compatibility | PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p |
| 3D Support | Yes |
| 3D Compatibility | Side-by-side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-under: 1080p24, 720p50 / 60 |
| Horizontal Scan Rate | 15.375~91.146 KHz |
| Vertical Scan Rate | 24~ 85 Hz (120Hz for 3D feature) |
| Displayable Colors | 1.07 billion |
| Noise Level (Eco mode) | 37dB/39dB (ECO/Active) |
| Power Supply | AC input 100 - 240V, 50 - 60 Hz, auto-switching |
| Power Consumption | 560W typical, 645W max (Bright), 445W typical, 510W max (Eco), <0.5W (Standby) @ 110V AC |
| Lamp Type | 465W |
| Operating Conditions | Operating temperature at sea level 10,000 feet = 73.4F max; must manually switch to high altitude mode at 5,000 feet |
| Operating Temperature | Operating temperature at sea level 10,000 feet = 73.4F max; must manually switch to high altitude mode at 5,000 feet |
| Security | Kensington Lock, password protection |
| Remote Control | IR |
| Standard Accessories | AC power cord, remote control, batteries, multilingual CDROM, user’s manual, quick start guide and warranty card |
| Optional Accessories | Universal ceiling mount, DLP® Link™ 3D glasses, HDBaseT transmitter |
| Optional Wireless | No |
| 360’ Operation | Yes |
| Warranty | 3 Years |
| RoHS | Compatible |
| Projection method | Front, rear, ceiling mount, table top |
| Warranty | 3-year Optoma Express Service, 1-year on lamp |
