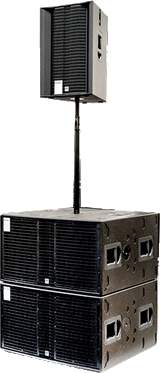

HK Linear 5 L5 LTS A What does it take to throw the entire frequency spectrum over 30 meters and beyond? Only large line arrays pack a punch powerful enough to deliver that kind of performance. Until now, that is. LINEAR 5 LTS A has arrived, and it’s the first speaker to deliver real long throw performance in an ultra-compact format. Now you can hit the road with fewer speaker components in tow, saving valuable space on your truck. What’s more, you can set up, stack and fly rigs that much faster and easier. The new LINEAR 5 LTS A is not only the easiest way of treating audiences of up to 3,000 to the best sound; it’s also the most economical option out there. Features: Ultra compact long throw system Economical (cost-performance ratio, saves truck space) Innovative Multicell Transformer Technologie (MCT) Vertical asymmetrical directivity (+5° / -25°) Acoustically correct headstacking 1.000 Watt (650 W + 350 W, biamped) 138 dB Halfspace Made in Germany Tech Data Model L5 LTS A Max SPL 133 dB half space (@10% THD) Max SPL peak 138 dB half space (@10% THD) Max SPL calculated 141 dB half space Frequency response +/- 3 dB 115 Hz – 14 kHz Frequency response -10 dB 100 Hz – 20 kHz Power Rating 1000 Watt Low/Midrange amplifier 650 Watt @ 4 ohms HF Amplifier 350 Watt @ 4 ohms Amplifier Class D – Biamped Active protection circuits Undervoltage Protection, Thermoprotection, Short Circuit Protection, Overcurrent Protection, Subsonic 24 dB/oct., Peak limiter, DSP-Input limiter Low/Mid Speaker 3x 8" Neodymium HF Driver 1" Neodymium Horn characteristics 60° x +5°/-25° MCT horn Cut-off Frequency active 1.7 kHz FIR X-Over with 48 dB/oct. Connections 1x XLR–1/4"-Combo In, 1x XLR-Thru Input Sensitivity +4 dBu @ Gain Centerclick / L5 System Level Pole mount MonoTilt 0° Rigging points 7x M8 Handles 2, Integrated Enclosure Birch multiplex Grille 2 mm metal grille backed with black acoustic foam Finish Acrylic enamel, black Optional accessories Protective cover, Tilt Bracket, Tilt Bracket Head Stack Extension Pack, Cluster Plate (Pick Point), AP-8 Rigging Point Dimensions (WxHxD) 44 x 68 x 46 cm Weight 24.9 kg / 54.9 lbs.
