KV2 ESD10 Passive Speaker: Complete Buyer's Guide for Aussie Installers 2026
KV2 ESD10 Passive Speaker: Complete Buyer's Guide for Australian Installers 2026
If you're specifying loudspeakers for an install project in Australia — whether it's a hospitality venue, house of worship, corporate space, or performing arts hall — you've probably noticed that the mid-tier install market is crowded with options that look great on paper but sound remarkably average in practice. The KV2 ESD10 belongs to a different conversation entirely.
KV2 Audio doesn't chase volume specs or party tricks. They're a Czech manufacturer with a near-obsessive focus on transient response and phase coherence — the stuff that actually determines whether a speaker sounds lifelike or just loud. The ESD10 is their compact 2-way passive offering from the ESD (Entertainment Sound Design) series, and it's aimed squarely at installers who need genuine audio quality from a practical, unobtrusive enclosure.
This guide breaks down everything you need to know about the ESD10 — what it does well, where it fits, what it's up against, and whether it's the right choice for your project. No fluff, no cheerleading. Just honest analysis for Australian audio professionals and serious venue owners.
Understanding KV2 Audio's Approach (And Why It Matters)
Before diving into specs, it's worth understanding what makes KV2 different as a manufacturer. Most loudspeaker brands optimise for peak SPL, then work backwards to make the speaker sound acceptable. KV2 works the other way around — they prioritise transient accuracy and waveform fidelity first, then build the enclosure around that goal.
In practical terms, this means KV2 speakers tend to sound noticeably more natural and detailed than comparably-priced competitors. Speech intelligibility is typically excellent, and music reproduction has a clarity that's hard to achieve with conventional off-the-shelf drivers and crossover designs.
The ESD series represents KV2's dedicated installation range. Where their ESP and ES lines target touring and portable live sound, the ESD speakers are designed for permanent installations — with mounting provisions, weather-resistant options, and cosmetic finishes suited to architectural environments.
KV2 ESD10: Detailed Specifications and Analysis

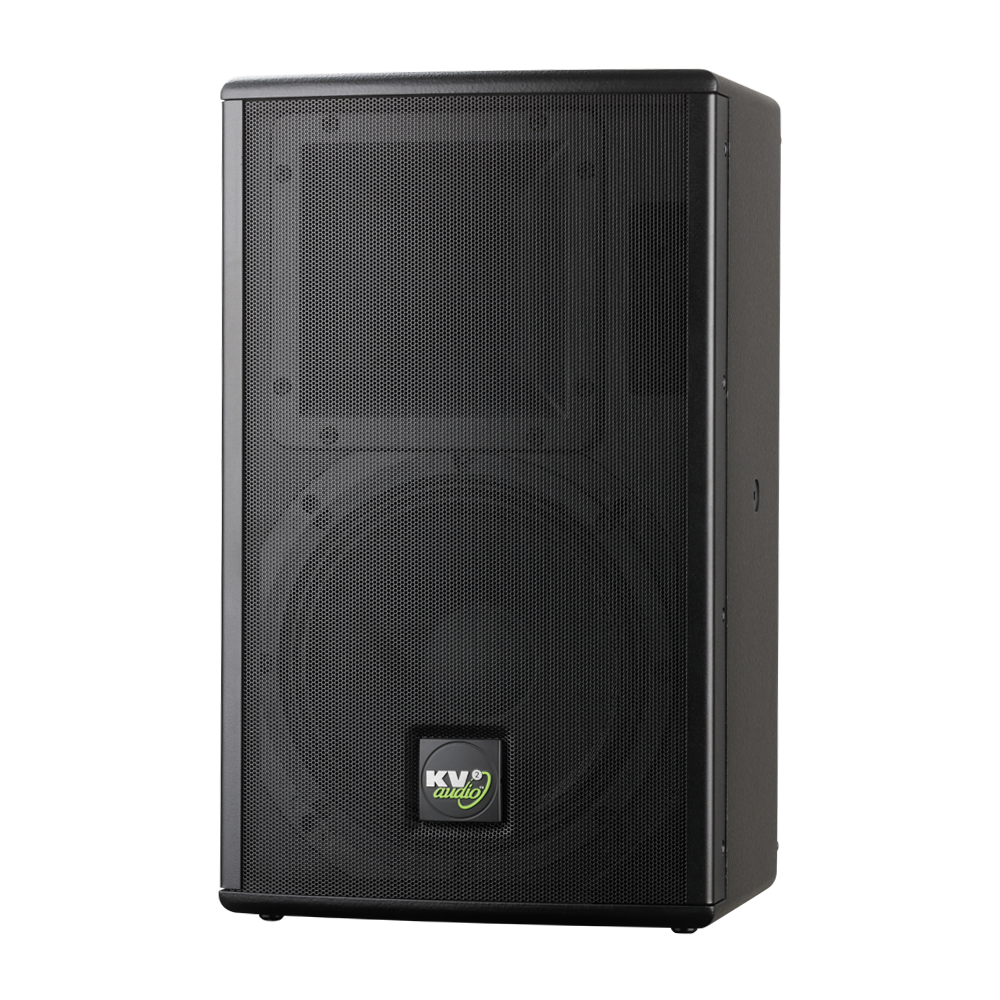

The ESD10 is a compact 2-way passive loudspeaker built around a 10-inch low-frequency driver and a 1-inch compression driver on a purpose-designed horn. Here's what the spec sheet tells us — and what it actually means in the real world.
Key Specifications
| Specification | KV2 ESD10 | What This Means |
|---|---|---|
| Type | 2-way passive | Requires external amplification — choose your amp carefully |
| LF Driver | 10" (250mm) woofer | Good balance of low-end extension and cabinet compactness |
| HF Driver | 1" compression driver | KV2's custom driver delivers excellent transient response |
| Frequency Response | 65 Hz – 20 kHz | Solid full-range coverage for voice and music without subs in smaller spaces |
| Nominal Impedance | 8 ohms | Standard impedance — straightforward amplifier matching |
| Power Handling | 250W continuous / 1000W peak | Don't underestimate headroom — KV2's drivers are built to handle real-world transients |
| Sensitivity | 96 dB (1W/1m) | High sensitivity means you need less amplifier power for the same output |
| Coverage Pattern | 80° × 50° (H×V) | Controlled dispersion suits focused coverage in install environments |
| Enclosure | Multi-ply birch plywood | Resonance-free, durable construction for long-term installations |
| Rigging | Multiple M10 rigging points, optional brackets | Versatile mounting for wall, ceiling, or truss applications |
| Finish | Textured black (custom colours available) | Unobtrusive aesthetic for architectural spaces |
What the Specs Don't Tell You
On paper, a 10-inch 2-way passive speaker with 96 dB sensitivity might look similar to a dozen other options. Here's what separates the ESD10 in practice:
- Transient response: KV2's driver and crossover design preserves the leading edge of transients — the initial attack of a snare hit, the consonants in speech, the pluck of a guitar string. This is what makes audio sound "real" versus "reproduced," and it's where cheaper speakers fall apart.
- Phase coherence: The crossover network maintains phase alignment through the crossover region, eliminating the smeared, disconnected sound that plagues many 2-way designs.
- Off-axis performance: The 80° × 50° coverage is genuinely consistent, not just a -6 dB number on paper. Audience members at the edges of coverage hear essentially the same tonal balance as those on-axis.
- Amplifier pairing: As a passive speaker, the ESD10 performs best with KV2's own amplification (ESP series), but it also pairs well with quality third-party power amps. KV2 provides recommended amplifier specifications and processing settings.
How the ESD10 Compares: Market Alternatives
No buyer's guide is complete without honest comparisons. Let's look at where the ESD10 sits relative to its main competitors in the Australian install market.
Competitive Landscape
| Feature | KV2 ESD10 | QSC AP-5102 | JBL Control 30 | d&b E5 |
|---|---|---|---|---|
| Configuration | 2-way passive | 2-way passive | 2-way passive | 2-way passive |
| LF Driver | 10" | 10" | 10" | 8" |
| Sonic Character | Transparent, detailed, musical | Neutral, utilitarian | Warm, slightly coloured | Precise, clinical |
| Speech Intelligibility | Excellent | Very good | Good | Excellent |
| Music Reproduction | Exceptional | Good | Good | Very good |
| Build Quality | Premium (birch ply) | Good (composite) | Good (polymer coated) | Premium (birch ply) |
| Price Point | Premium | Mid-range | Budget-friendly | Ultra-premium |
| Best For | Quality-critical installs | Corporate/commercial | Budget installs | Prestige venues |
KV2 ESD10 vs QSC AP-5102
QSC's AcousticPerformance series is extremely popular in Australian corporate and hospitality installs, and the AP-5102 is a capable 10-inch 2-way that gets specified frequently. It's a solid, dependable workhorse. But put it next to the ESD10 in a blind listening test, and the difference in transient detail and high-frequency clarity becomes obvious. The QSC sounds perfectly fine for background music and speech reinforcement. The KV2 sounds like a proper loudspeaker.
If your project is purely functional — corporate presentations, paging, background music — the QSC will do the job at a lower price point. If the venue cares about how things actually sound — live music venues, theatres, premium hospitality — the ESD10 justifies its higher price.
KV2 ESD10 vs JBL Control 30
JBL's Control series is the default "budget install" choice, and the Control 30 has been around in various forms for years. It's cheap, widely available, and adequate. However, it lacks the refinement, build quality, and long-term reliability of the ESD10. For cafes, retail spaces, and background music applications where budget is the primary driver, the JBL does a reasonable job. For anything where audio quality actually matters to the client, the ESD10 is in a different league.
KV2 ESD10 vs d&b audiotechnik E5
This is a more interesting comparison. d&b's install speakers are genuinely excellent, and the E5 is a compact, well-engineered 2-way. Sonically, the d&b leans more clinical and precise, while the KV2 offers a more musical, dynamic character. The d&b ecosystem is tightly integrated with their amplification and software, which can be both a strength (seamless system design) and a limitation (vendor lock-in). The KV2 offers more flexibility in amplifier choice while still delivering premium performance. Price-wise, d&b typically commands a higher premium than KV2, making the ESD10 arguably better value at this performance tier.
Where the ESD10 Excels: Application Guide
Not every speaker suits every application. Here's an honest breakdown of where the ESD10 is the right choice — and where you might look elsewhere.
Ideal Applications
- Live music venues (small to mid-size): The ESD10's transient response and dynamic range make it outstanding for venues where live music quality matters. Pubs, clubs, and intimate performance spaces up to around 200 capacity will be well served, especially when paired with a matched subwoofer for full-range low-end extension.
- Houses of worship: Speech intelligibility is exceptional, and the musical reproduction handles everything from a solo vocalist to a full worship band. The controlled dispersion helps manage reflective church acoustics.
- Theatres and performing arts: Dialogue clarity and the ability to reproduce subtle dynamic nuances make the ESD10 a strong candidate for theatrical reinforcement and front fills.
- Premium hospitality: Restaurants, bars, and hotels where the owner actually cares about the guest experience and recognises that bad audio undermines ambiance.
- Corporate boardrooms and presentation spaces: When the client wants voice reproduction that sounds natural, not like it's coming through a tin can.
Where You Might Look Elsewhere
- Large-scale outdoor events: The ESD10 isn't designed for this. Look at KV2's larger ES or SL series for serious SPL requirements.
- Distributed ceiling systems: If you need 30 speakers across a shopping centre ceiling, the ESD10 is overkill. Standard 70V/100V ceiling speakers are the right tool for that job.
- Ultra-budget projects: If the client's primary concern is spending as little as possible, the ESD10 isn't going to win that conversation. But you should have that conversation about long-term value — cheap speakers get replaced sooner.
- Extreme weather-exposed outdoor installs: While the ESD10's build quality is excellent, purpose-built weatherproof speakers with IP ratings are better suited for permanent outdoor exposure in Australian conditions.
The Passive Speaker Advantage: Why It Matters for Installs
In an era where powered speakers dominate the portable market, the ESD10's passive design is actually an advantage for permanent installations. Here's why:
- Heat management: No amplifier electronics inside the cabinet means no heat buildup. In Australian venues where speakers might be mounted in ceiling cavities or enclosed soffits, this is a genuine reliability advantage. Active speakers in confined spaces can overheat and thermal-protect mid-event.
- Amplifier accessibility: Your power amps sit in a rack room where you can access them for maintenance, not 5 metres up a wall behind a speaker grille.
- System flexibility: You choose your amplification. You can upgrade amps without changing speakers. You can run redundant amplifier channels. You have more control over the entire signal chain.
- Longevity: Passive speakers with quality components can last decades. The electronics in active speakers are typically the first things to fail, and once they do, the whole unit needs servicing.
The trade-off, of course, is that you need to budget for amplification separately and run speaker cable rather than just signal cable and power. For permanent installs, this is usually a net positive. For portable applications, it's less convenient.
System Design Considerations for Australian Installers
Specifying the ESD10 is only half the equation. Getting the best out of it requires attention to the full signal chain.
Amplifier Matching
KV2's own amplification (particularly the ESP series) is purpose-designed for their speakers and delivers the best results. However, quality third-party amplifiers from brands like Powersoft, Lab Gruppen, or Crown will also pair well. Key considerations:
- Power rating: Aim for an amplifier delivering 300–500W into 8 ohms per channel. This gives you clean headroom above the speaker's 250W continuous rating without risking damage.
- Damping factor: High damping factor (>200) ensures tight control of the 10-inch woofer, preserving the transient response KV2 engineers into the design.
- DSP processing: If not using KV2 amplification, ensure your system processor or DSP-equipped amplifier applies appropriate crossover, limiting, and EQ settings per KV2's recommendations.
Subwoofer Integration
With a low-frequency response starting around 65 Hz, the ESD10 handles most music and speech content without subwoofer support. However, for venues with live music, DJs, or cinematic content, adding a matched subwoofer (such as KV2's ESD series subs) extends the system's low-end impact significantly. In most cases, a single subwoofer per pair of ESD10s provides excellent full-range coverage for rooms up to 200 capacity.
Rigging and Mounting
The ESD10 includes M10 rigging points for professional mounting hardware. KV2 offers purpose-designed brackets, or you can use compatible third-party mounting solutions. For Australian installations:
- Always use safety cables in addition to primary mounting — this is non-negotiable for overhead installs
- Ensure mounting hardware is rated for at least 10× the speaker's weight
- Consider the speaker's coverage pattern (80° × 50°) when calculating mounting angles — use KV2's coverage calculator or prediction software to optimise placement
- Factor in Australian building codes and relevant standards for suspended equipment
Decision-Making Framework: Is the ESD10 Right for Your Project?
Before you commit to any speaker for an install project, work through these questions:
Questions to Ask Your Client
- What content will the system primarily reproduce? Speech only? Background music? Live performances? The answer determines how much audio quality matters.
- How critical is the listening experience to the venue's success? A live music venue lives or dies by sound quality. A warehouse doesn't.
- What's the expected lifespan of the installation? If this system needs to perform reliably for 10+ years, investing in quality now saves money later.
- What's the total budget — speakers AND amplification? A passive system requires separate amplification. Make sure the budget accounts for the full signal chain.
- Are there aesthetic constraints? The ESD10's compact form factor and clean finish work in most architectural contexts, but confirm with the client.
When the ESD10 Is the Clear Winner
- The venue values audio quality and is willing to invest appropriately
- Speech intelligibility is critical (houses of worship, theatres, conference spaces)
- Live music reproduction needs to sound natural and dynamic
- Long-term reliability and build quality are priorities
- The installer wants a speaker they can confidently stand behind
When to Consider Alternatives
- Budget is the overriding concern and audio quality is secondary
- The application requires weatherproof outdoor ratings the ESD10 doesn't offer
- You need higher SPL from a single enclosure (look at KV2's larger models)
- The project is a distributed background music system with 20+ zones
Value Analysis: Understanding the Total Cost of Ownership
The ESD10 sits in the premium tier of the 10-inch install speaker market. Let's be transparent about what that means financially.
Yes, you can buy a comparable-looking 10-inch 2-way passive speaker for significantly less. And for genuinely non-critical applications, that might be the right call. But experienced installers know that the real cost of a speaker system includes:
- Purchase price (where budget options win)
- Installation labour (roughly the same regardless of speaker brand)
- Commissioning and tuning time (quality speakers with consistent coverage patterns are faster to tune — this matters)
- Service calls and warranty claims (cheap speakers fail more often, and every truck roll costs money)
- Client satisfaction and referrals (a system that sounds genuinely good generates positive word-of-mouth for your install business)
- Replacement timeline (quality speakers last 15–20 years; budget options often need replacing in 5–7)
When you calculate total cost of ownership over a 10-year period, premium speakers like the ESD10 frequently work out cheaper than budget alternatives that need replacing or servicing. More importantly, they leave your client with a system they're actually proud of — and that's what gets you the next project.
Pros and Cons: Honest Assessment
Strengths
- Exceptional sound quality — transient response and phase coherence set it apart from the pack
- Outstanding speech intelligibility — ideal for spoken word applications
- Premium build quality — birch plywood enclosure built to last decades
- Consistent coverage — reliable off-axis performance makes system design predictable
- Compact form factor — fits architecturally sensitive spaces without visual compromise
- Passive design advantages — no heat issues, accessible amplification, longer lifespan
- Versatile mounting — multiple rigging points suit various installation scenarios
Limitations
- Premium pricing — not the cheapest 10-inch option, and you'll need to budget separately for amplification
- Requires quality amplification — pairing it with a cheap amp undermines the speaker's capabilities
- Not weatherproof as standard — exposed outdoor applications need a different solution
- 65 Hz low-end limit — subwoofer integration needed for bass-heavy content
- Smaller brand awareness — some clients may not recognise the KV2 name (though audio professionals certainly do)
Final Verdict: Who Should Buy the KV2 ESD10?
The KV2 ESD10 isn't for every project, and that's perfectly fine. It's for projects where audio quality genuinely matters — where the client, the audience, or the application demands more than just "adequate" sound from a box on the wall.
If you're an Australian installer who's tired of apologising for mediocre-sounding systems, or a venue owner who's noticed that something's just off about your current speakers but can't quite articulate what, the ESD10 addresses those frustrations directly. KV2's approach to speaker design produces results you can hear immediately — clearer speech, more dynamic music, and an overall sense that the system is reproducing sound rather than merely amplifying it.
Is it the cheapest option? No. Is it the best-sounding compact install speaker you can put on a wall at this price point? Strong argument that it is.
Our recommendation: If your project demands genuine audio quality from a compact, reliable, install-friendly enclosure, the KV2 ESD10 deserves serious consideration. Audition it against whatever you're currently specifying. Your ears will tell you the rest.
