EVID S5.2T vs JBL & Bose: Aussie Install Speaker Guide 2026
EVID S5.2T vs JBL & Bose: Aussie Install Speaker Guide 2026
Choosing surface-mount speakers for a commercial space sounds simple, right up until you're squinting at a spec sheet full of impedance ratings, transformer taps and coverage angles. Get the decision wrong and you'll either overspend on amplification you don't need, or end up with patchy, fatiguing sound spread unevenly across your cafe, retail floor or function room. The Electro-Voice EVID S5.2T — supplied here as a matched black pair with built-in 70V/100V and 8-ohm operation — is one of the most widely specified 5.25-inch install speakers in Australia. But is it the right call for your project, or would a JBL Control or Bose FreeSpace box serve you better? This guide walks through the decision the way a sensible integrator would.
Install speakers are a different game to hi-fi
Before comparing models, it helps to understand what you're actually solving for. Commercial install speakers like the EVID S5.2T are built for distributed audio — spreading even, intelligible sound across a room or a string of rooms, rather than creating a single sweet spot for one listener. That changes everything about how you choose.
In a typical Aussie venue you'll run anywhere from four to forty small speakers off a single amplifier. Doing that on standard low-impedance (8-ohm) wiring quickly becomes impractical, because the amplifier load drops and cable runs get long. The answer is a constant-voltage (70V/100V) line system, where each speaker has a small transformer that lets you tap a set wattage and daisy-chain dozens of units on light cable. The "T" in EVID S5.2T means the transformer is already built in — and crucially, it can be bypassed for 8-ohm use when you only need a couple of speakers. That dual capability is the headline reason this model gets specified so often.
What you're actually buying

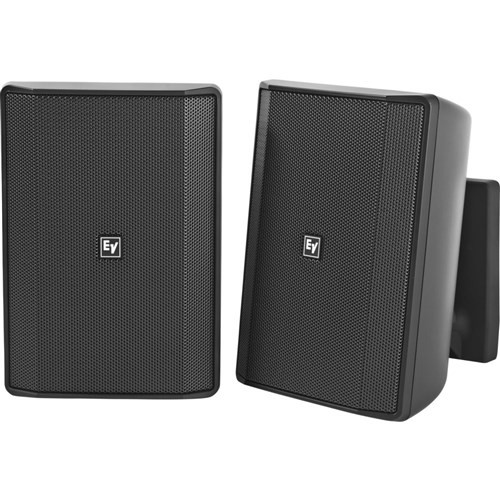

The EVID S5.2T is a compact two-way surface-mount loudspeaker with a 5.25-inch woofer and a titanium-coated tweeter, housed in a UV-stable, weather-resistant composite cabinet. It ships as a pair, in black (a white version exists for lighter interiors), with a tool-free SecureMount bracket that lets you aim the speaker and lock it off without fiddly hardware.
The 5.25-inch driver size is the sweet spot of the EVID-S range. It carries noticeably more low-end warmth and output than the 4-inch model, yet stays small and unobtrusive enough for ceilings, walls and tight corners where an 8-inch box would look heavy-handed. For most background-to-light-foreground music applications — think dining, retail, gyms, foyers, breakout rooms and covered outdoor areas — it lands in exactly the right place.
EVID S5.2T key specifications
| Specification | EVID S5.2T (per speaker) |
|---|---|
| Type | 2-way surface-mount, ported |
| Low frequency driver | 5.25" (130mm) woofer |
| High frequency driver | 1" titanium-coated tweeter |
| Frequency response | Approx. 70 Hz – 20 kHz |
| Operation modes | 70V / 100V line and 8-ohm direct |
| Transformer taps (typical) | 60 / 30 / 15 / 7.5 W |
| Power handling (8-ohm) | Approx. 150 W program |
| Sensitivity | Approx. 88 dB (1W/1m) |
| Coverage pattern | Wide conical (approx. 110°) |
| Enclosure | UV-resistant composite, indoor/outdoor rated |
| Mounting | Included SecureMount aiming bracket |
| Colour | Black (white available) |
Specs are indicative for buyer comparison — always confirm exact tap values and dimensions against Electro-Voice's current datasheet before finalising an amplifier and cabling plan.
70V/100V or 8-ohm? The choice that shapes your whole system
This is the single most important decision when buying any "T" speaker, and it's where a lot of first-time buyers come unstuck. Here's the plain-English version:
- Run 8-ohm (low-Z) when you have a small system — say one to four speakers near the amplifier, like a single cafe or a small bar. You'll get the fullest fidelity and you don't pay an impedance-matching penalty.
- Run 70V/100V (high-Z) when you're covering a larger area, multiple zones, or long cable runs with many speakers. You simply add up the wattage taps you've selected, keep the total under your amplifier's rating, and the system stays stable no matter how many boxes you add.
Because the EVID S5.2T does both, you're not locked in. A small venue can start in 8-ohm mode and migrate to a 100V backbone later as it expands — a genuine future-proofing advantage over fixed 8-ohm-only speakers.
EVID S5.2T vs its EVID-S siblings
Before comparing brands, it's worth knowing where the S5.2T sits within Electro-Voice's own range, because buyers frequently choose the wrong size for the room.
| Model | Driver | Best suited to | Trade-off |
|---|---|---|---|
| EVID S4.2T | 4" woofer | Tight spaces, low ceilings, pure background music, paging | Lighter low-end, less output headroom |
| EVID S5.2T | 5.25" woofer | The all-rounder: dining, retail, gyms, foyers, covered outdoor | Slightly larger footprint than the S4.2 |
| EVID S8.2T | 8" woofer | Foreground music, larger rooms, more bass and volume | Bulkier, more visually dominant, higher cost |
The verdict within the family: if you genuinely just need quiet background sound in a small room, the S4.2T saves money. If you want music people will dance or work out to, step up to the S8.2T. For the broad middle — the majority of Australian commercial fit-outs — the S5.2T is the value sweet spot, delivering enough warmth and SPL without dominating the space.
EVID S5.2T vs JBL Control vs Bose FreeSpace
The two names you'll most often weigh against Electro-Voice in this category are JBL's Control series and Bose's FreeSpace range. All three are reputable; the differences are about positioning, ecosystem and feel rather than one being "bad".
| Factor | EV EVID S5.2T | JBL Control 25AV | Bose FreeSpace DS 40SE |
|---|---|---|---|
| Woofer size | 5.25" | 5.25" | 4.5" |
| 70/100V + 8-ohm | Yes (both) | Yes (both) | Yes (both) |
| Sound signature | Balanced, slightly forward, intelligible | Punchy, bright, music-forward | Smooth, articulate, very even dispersion |
| Bracket / install | Tool-free SecureMount, easy aiming | Solid bracket, well proven | Refined low-profile design |
| Outdoor capable | Yes (weather-resistant) | Yes | Yes |
| Typical value position | Strong price-to-performance | Mid-to-premium | Premium, design-led |
How to read this comparison:
- Choose the EVID S5.2T when you want the best balance of price, output and flexible wiring — particularly on multi-zone jobs where you're buying speakers by the dozen and budget per box matters.
- Choose JBL Control 25AV if you want a slightly punchier, more music-led voicing and you're already invested in a JBL/Crown ecosystem.
- Choose Bose FreeSpace when the design aesthetic and ultra-even coverage justify a premium — boutique hospitality, hotels and architecturally sensitive interiors are its natural home.
For the typical Australian cafe, club, gym, retail chain or community venue, the EVID S5.2T usually wins on total project value without giving up the things that matter: clean output, reliable transformers and a genuinely quick install.
Check the current price and availability of the EVID S5.2T (Black Pair) at MusiconStage →
Strengths and trade-offs at a glance
Where the EVID S5.2T shines:
- Dual 70V/100V and 8-ohm operation means one speaker covers small and large systems
- 5.25-inch driver hits the value sweet spot for warmth versus footprint
- Tool-free SecureMount bracket dramatically speeds up multi-speaker installs
- Weather-resistant composite cabinet handles covered outdoor and humid areas
- Strong price-to-performance, especially when buying in pairs or larger counts
- Backed by Electro-Voice's long track record in commercial sound
Where to be realistic:
- It's a background-to-light-foreground speaker — not a high-output dance system. For serious bass and volume, look at the S8.2T or a subwoofer.
- Like all 70/100V speakers, transformer taps trade a little fidelity for system convenience; use 8-ohm mode where you can.
- A pair alone won't cover a large open-plan space evenly — plan speaker count and spacing properly.
Which install speaker is right for your space?
- Best all-round value for Aussie commercial fit-outs: EVID S5.2T. It does the most jobs well for the money.
- Best for tiny rooms or pure paging/background: EVID S4.2T — smaller, cheaper, plenty for the task.
- Best for foreground music, gyms and larger rooms: EVID S8.2T or add a sub.
- Best for design-led premium hospitality: Bose FreeSpace, budget permitting.
- Best for punchy, music-forward JBL-based systems: JBL Control 25AV.
How to choose: a quick decision framework
- Map the space. Measure the area and ceiling height, then work out how many speakers you need for even coverage — not just how many fit the budget.
- Pick your wiring mode. Few speakers and short runs → 8-ohm. Many speakers, multiple zones or long runs → 70V/100V.
- Size the driver to the job. Background = 4–5.25"; foreground/music = 5.25–8".
- Total your wattage taps. In 70/100V mode, add up every speaker's selected tap and keep the sum comfortably under your amplifier rating, leaving headroom.
- Confirm the environment. Outdoor or humid? Confirm the weather rating and mounting orientation.
- Buy the matching amp. A great speaker on an undersized or mismatched amplifier disappoints — budget for both together.
Common mistakes Aussie buyers make
- Buying too few speakers and turning them up. Even coverage at low volume always beats two loud boxes blasting one corner.
- Ignoring the transformer taps. Setting every speaker to its highest tap can overload the amplifier — match taps to the volume each zone actually needs.
- Forgetting the amplifier in the budget. The speaker price is only part of the system cost.
- Choosing on brand badge alone. Match the model to the room and wiring scheme; that matters more than the logo.
The verdict
For the vast majority of Australian commercial spaces — cafes, retail, gyms, foyers, function rooms and covered outdoor areas — the Electro-Voice EVID S5.2T is the install speaker that's hardest to argue against. It pairs a genuinely useful 5.25-inch driver with the flexibility of both 70V/100V and 8-ohm operation, wraps it in a durable, weather-ready cabinet, and makes installation fast with the tool-free bracket. JBL's Control series earns its place for punchier music systems, and Bose FreeSpace is the choice when design and premium even-coverage justify the spend — but on total project value, the EVID S5.2T remains the smart default.
If your space is small and purely background-focused, save with the S4.2T; if it's larger and music-led, step up to the S8.2T. Everywhere in between, this is the box to specify with confidence.
Buy the Electro-Voice EVID S5.2T Black Pair at MusiconStage →
Not sure how many speakers or what amplifier your venue needs? Get in touch with the MusiconStage install team for tailored advice before you order.
